INBOARD LEFT SLAT ASSEMBLY
%20The%20corner%20ribs%20are%20clecoed%20and%20drilled%20with%2030%20size%20along%20the%20slat.png)
The corner ribs were clecoed and drilled with #30 drill bit along the Slat part.

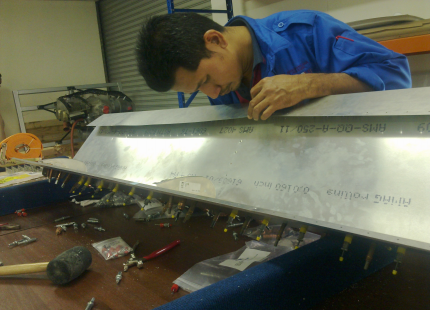

%20the%20top%20rib%20and%20top%20skin%20are%20examined%20to%20fit%20with%20the%20pilot%20hole%20and%20are%20drilled%20with%2030%20size.png)
The top Rib and the Skin were examined to fit with the pilot hole and were drilled with #30 drill bit.
%20the%20top%20rib%20are%20drilled%20using%2030%20size.%20then,%20the%20top%20skin%20is%20clecoed%20along%20the%20pilot%20hole%20line%20that%20are%20located%20at%20the%20aft%20slat%20and%20drilled%20space%20(selang).png)
The top Rib was drilled using #30 drill bit. The top Skin was drilled in equal spacing and then, clecoed along the pilot hole line located at the aft Slat.

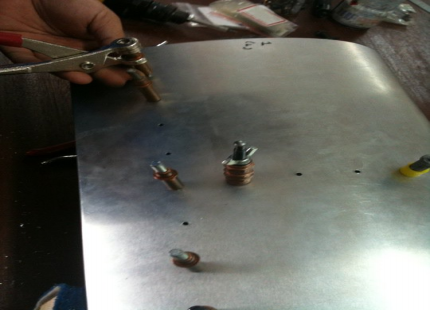

%20cleco%20the%20hole%20that%20have%20been%20drilled%20with%2030%20size.png)
Clecoed the hole with #30 Cleco.

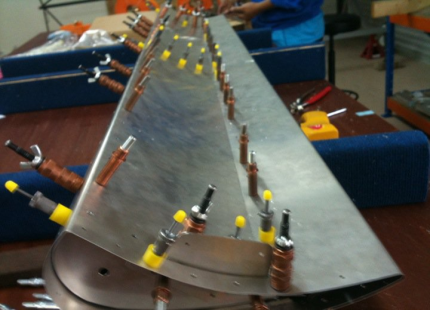

%20bottom%20skin%20is%20clecoed%20and%20drill%20along%20the%20aft%20slat%20pilot%20hole%20line.png)
The bottom Skin was clecoed and drilled along the aft Slat pilot hole line.

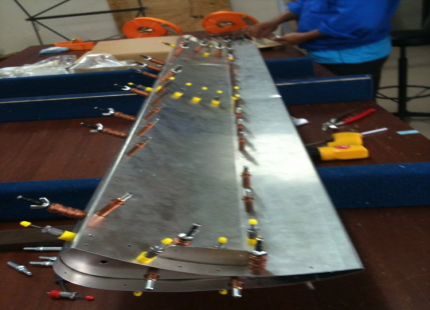

%20Grip%20pin%20is%20ready%20to%20be%20removed.png)
Grip pin was ready to be removed.
%20Finished%20product.png)
The completed assembly after clecoing.
