26 Disember 2013

FUSELAGE JOINING & FORWARD FUSELAGE SECTION

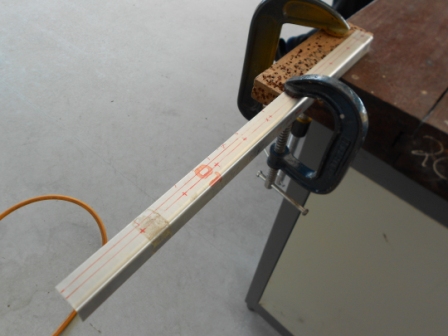

Today, we continue on to fit the Forward Angle (75F12-7). We measured the Angles to fit between the Firewall and Cabin Side. We then layout a 40 mm rivet pitch and also made sure that it miss the crimps in the L-angle

With a #40 drill bit, we then pre drilled #40 drill bit to the Forward Angle

Next we installed the Bottom Forward Angle. Then we continue to the Middle Forward Angle and Top Forward Angle

We also completed the Forward Angles on the Passenger Side
