10 September 2013

FUSELAGE JOINING & FORWARD FUSELAGE SECTION

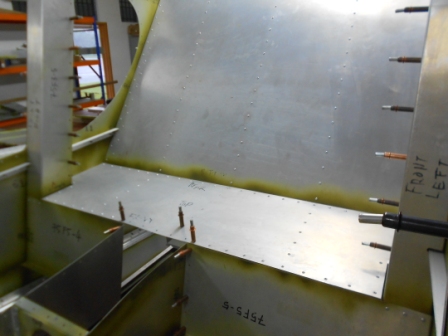

Today we have started to rivet the Baggage Compartment of the Rear Fuselage as shown clecoed with Brown cleco, A4. We have checked with the plan, and no issue on the assembly.

This riveting process will also rivet the Baggage Back, 75F5-2, to the Baggage Floor, 75F5-3.

Here, it is shown that the Baggage Floor and the Baggage back is riveted.

And it is also same goes to the left and right Upright, 75F3-4, that is also riveted to the Baggage Floor together with 4 L-angles attached to the Upright.

Next we are ready to rivet the side of the Baggage Floor that will attach the Baggage Floor to the Side Fuselage. The holes are then clecoed to be ready for the riveting process.

As in the picture, it is shown that the holes are riveted. The rivets are checked and there is no issue on the rivets.

Next we will rivet the upright on the Pilot Side. The Upright is then clecoed to get ready for the riveting process.

As shown, we have riveted the Upright on the Pilot Side. There is no issue on the rivets as checked.

Next, we will continue to rivet on the passenger side of the Uprights.

Here we have riveted the Uprights on the Passenger Side. There is no issue on the rivets as checked.
