3 September 2013

FUSELAGE JOINING & FORWARD FUSELAGE SECTION

As for today, we have started to plan to rivet the forward fuselage.

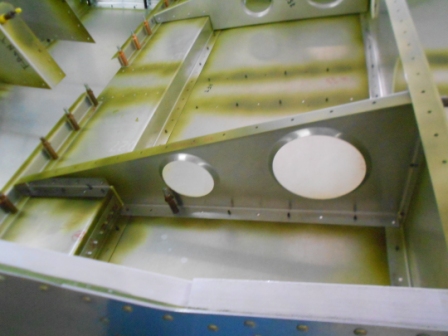

This is one more picture on the forward fuselage.

And this is the Gear Strut Fitting.

This is the Inboard Seat Belt Attachment, 75F13 – 7 on the passenger side.

Here we have riveted the Inboard Seat Belt Attachment with A5 rivets.

As in the picture, we also have riveted the Inboard Seat Belt Attachment on the Pilot Side.

Then we have installed the Both Left and Right Arm Rest Side, 75F12-1, on the forward fuselage and cleco.

As we go along, we have pre installed the nylon tube for the Elevator Servo Trim along the tail fuselage.

Here we show the back of the Nylon Tube pre installed along the Rear Fuselage.
