24 July 2013

FUSELAGE JOINING & FORWARD FUSELAGE SECTION

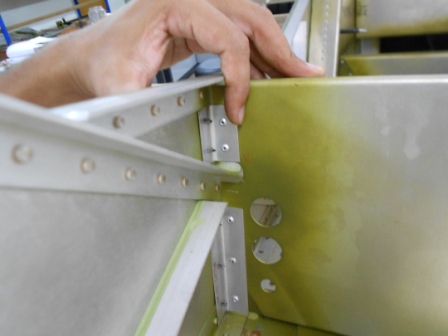

Today, we started to build the assembly after all the parts are primered. As shown in the picture above, we have installed both sides fuselage to the Rear Fuselage.

Next, we will rivet L-angles on both sides of the Seat Channel.

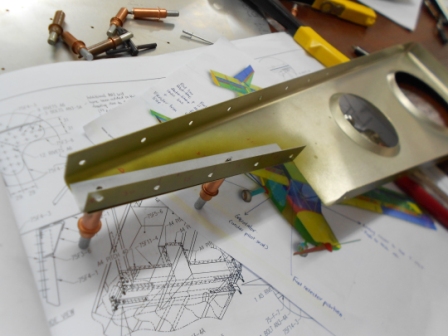

As shown in the picture, we have riveted the L-angles on both sides of the Seat Channel.

Next, we will rivet the L – Angle to the Seat Support.

Here, it is shown that the L-angle is riveted to the Seat Support of the passenger side.

Now, we move on to rivet the L-angle and the Seat Support of the Pilot Side.

We have riveted the L-angle and the Seat Support for the Pilot Side.
