9 October 2012

FUSELAGE JOINING & FORWARD FUSELAGE SECTION

With a #20 drill bit, we then enlarged the hole that we have previously drilled with #40 size. The Gusset is gripped with grip pin so that the position fixed.

This is the picture from the back of the gusset.

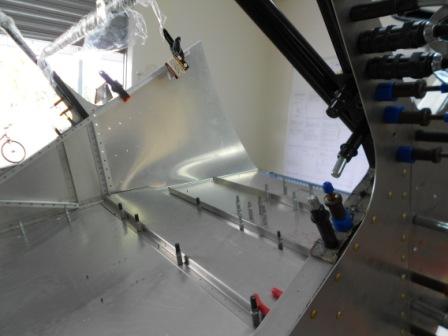

While this is another shot of both of the gusset that has been drilled to #20 to the aircraft fuselage and cabin sides.
